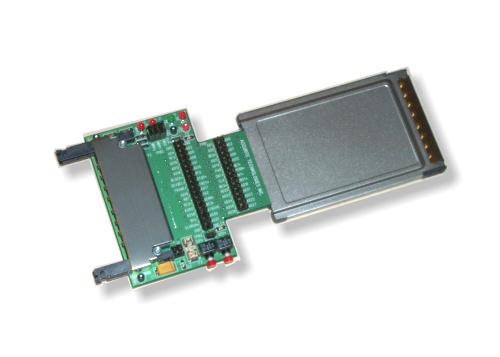

Cardbus ExtenderCard™

32-Bit Extender Card

The Accurite Cardbus ExtenderCard provides engineering, manufacturing and quality control personnel the flexibility they need in designing and troubleshooting Cardbus or PCMCIA PC Cards. This ExtenderCard easily plugs into Type II or III sockets and will accept any size card whether it be 3.3 or 5 Volt.

Cardbus ExtenderCard Features

• Six layer PCB with extensive grounding
  • Minimizes noise
  • Maximizes signal integrity
• Extended length gives adequate clearance for most PC Card sockets with ejector buttons
• Clearly labeled mnemonic test points are provided for each of the 68 bus pins
• Built-in push button switches simulate removal and reinsertion of a PC Card (ie, hotswapping), while prolonging the life of the computer's PC Card slot
• Multiple LEDs indicate the level of system power supplied to the ExtenderCard

To troubleshoot and debug PC Cards and Host Systems take a look at our  PC ExtenderCard, Mini PC ExtenderCard, PC ReportCard and PC Card Debug software.

Hardware and Software Development Services

Accurite also provides custom hardware and software development services to expedite development efforts in bringing PCMCIA, Cardbus, Express Card, PCI, CompactFlash, Secure Digital, USB, Blue Tooth, 802.11 and security products to market, or to otherwise supplement customer engineering resources.   Software development services such as device driver, application program, manufacturing test program, and product debug software are available for a variety of platforms which include, but are not limited to, Windows 95, 98, Me, NT, CE, 2000, XP, Vista and Windows 7.  Contact Accurite for a project quotation at:

Tel: (408) 395-7100

Fax: (408) 395-7119

Email: customerservice@accurite.com
